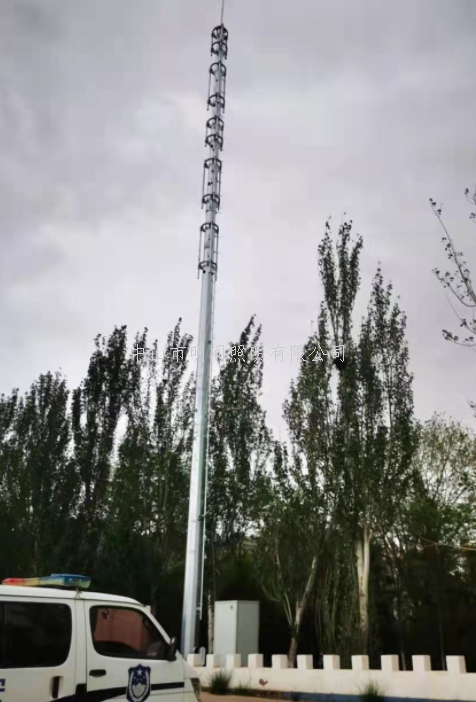

Communication pole, also known as communication pole or single tube tower, is a steel structure pole widely used in the communication industry, mainly for installing communication antennas, hence its name.

​

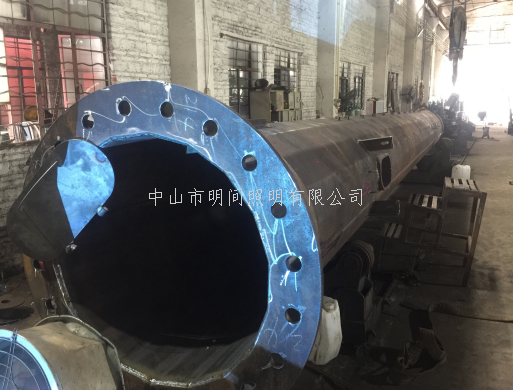

Each vertical pole of the communication pole determines the number of layers for installing the antenna based on different heights. In general, communication poles below 12 meters are equipped with one layer of antenna, two layers of antenna are installed within 20 meters, three layers of antenna are installed within 30 meters, and four layers of antenna poles are installed above 35 meters. When the height of the main pole of the communication pole exceeds 12 meters, a multi section sleeve insertion structure is usually used. The main pole adopts a polygonal conical structure, and the outer part of the sleeve insertion section is effectively prevented from tearing by strong welding.

​

The main pole material of communication poles is usually Q355B high-quality carbon structural steel, and the anchor bolts are made of A3 steel. The foundation design of the communication pole requires strict structural force calculation, and the foundation pouring work also needs to be strictly carried out in accordance with relevant standards, which is the key to ensuring that the communication pole does not collapse. The design and construction of communication poles require precise planning and strict execution to ensure their stability and reliability, in order to meet the needs of the communication industry.
